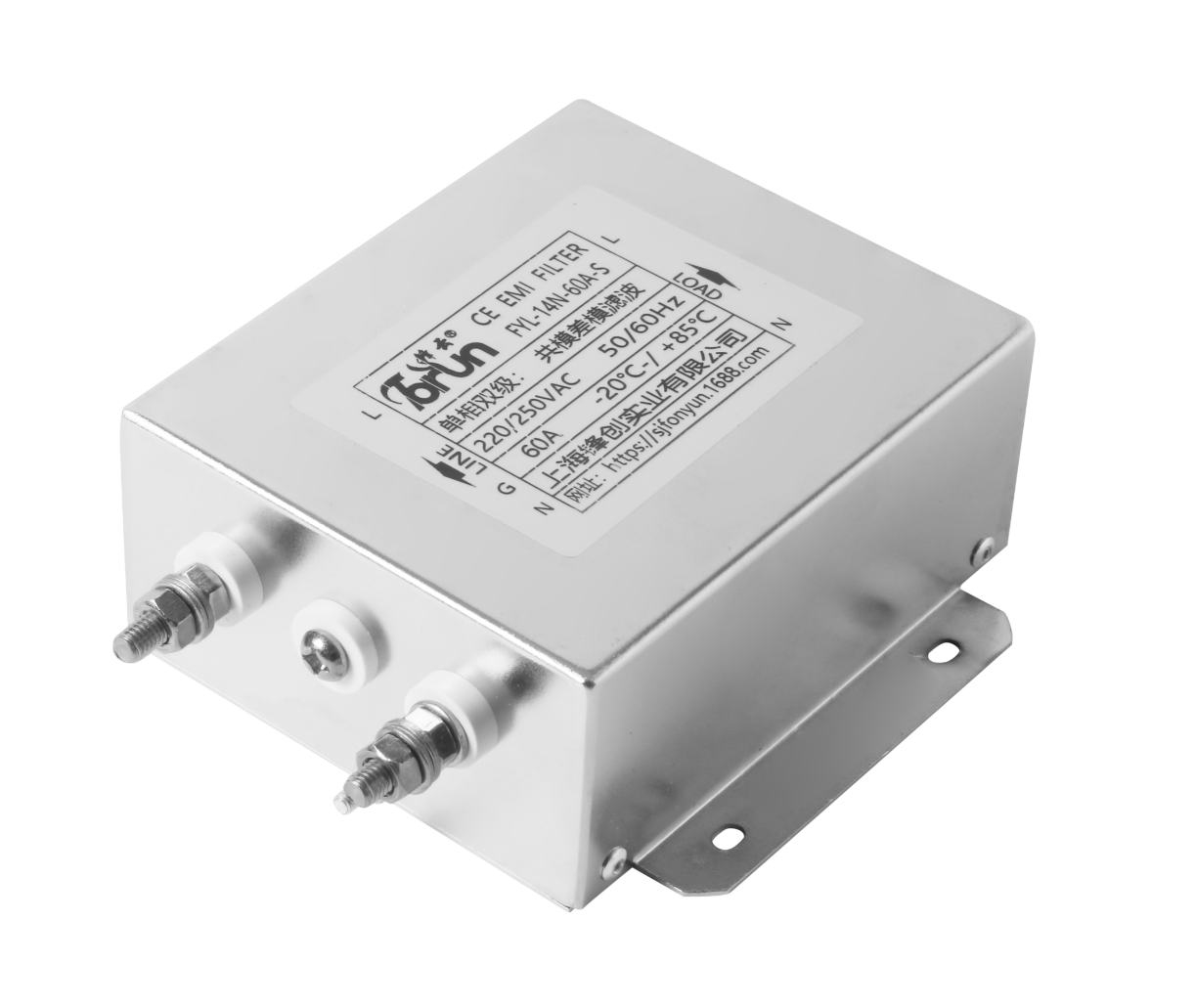

Name: FYL-14N-60A-S Single-Stage Double Filter
Brand: FONYUN
SKU: FYL-14N-60A-S

FYL-14N-60A-S

Single-Stage Double Filter

Keywords

emi-power-filterfilter

Input Voltage0~250VAC

Output Voltage0~250VAC

Output Current60A

Rated Current60A

Input AttributeSingle

WiringScrew terminal

Isolation3000VAC

PFCNo

Operating Temp.-20~+70℃

Model	FYL-14N-60A-S
Input Voltage	0~250VAC
Output Voltage	0~250VAC
Output Current	60A
Isolation Voltage	3000VAC
PFC	No
Operating Temp.	-20~+70℃
Rated Current	60A
Input Attribute	Single
Wiring	Screw terminal
Filter Grade	Two-stage
Mounting	35mm DIN-Rail
Protection	IP20

Product Description

The FYL-14N-60A-S is a single-stage double filter (rated 0~250VAC, rated current 60A). It features two-stage filter stages, screw terminal, certified to CE/RoHS. Operating temperature: -20~+70°C. It effectively suppresses conducted and radiated electromagnetic interference (EMI). Suitable for input-side EMI filtering of variable frequency drives, servo drives and switching power supplies. Manufactured and supplied directly by Fonyun (Shanghai Fonchuang Industrial Co., Ltd.); selection guidance, samples and technical support available — contact us for a quote.

Product Description

FYL-14N-60A-S Single-Stage Double Filter
