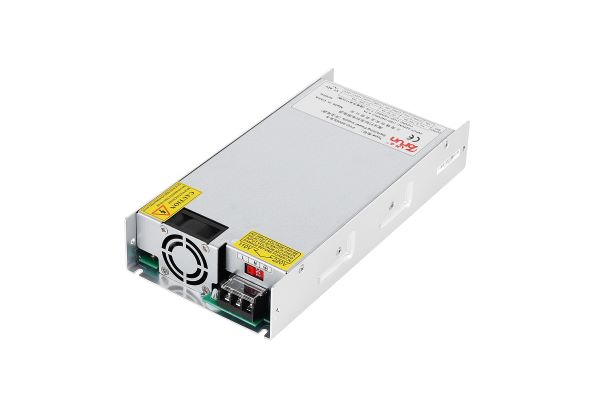

FYD-600QLC-S
Isolation Multi-Channel Series
Input Voltage(90~132VAC)AC115V /220V(176~264VAC) (Switching operation)
Output Voltage24V,12V,±15V
Output Current16A,2A,5A
Rated Current16A,2A,5A
Input AttributeSingle
Rated Power600.00W
Efficiency87%
PFCNo
Operating Temp.-20~+70℃
Dimensions230*114*41
Specifications
Certifications
Documents
Sample Request
| Model | FYD-600QLC-S |
| Rated Power | 600.00W |
| Input Voltage | (90~132VAC)AC115V /220V(176~264VAC) (Switching operation) |
| Output Voltage | 24V,12V,±15V |
| Output Current | 16A,2A,5A |
| Efficiency | 87% |
| PFC | No |
| Operating Temp. | -20~+70℃ |
| Dimensions | 230*114*41 |
| Rated Current | 16A,2A,5A |
| Input Attribute | Single |
| Mounting | 35mm DIN-Rail |
| Protection | IP20 |
